• SURF_LT_OUTSIDE1

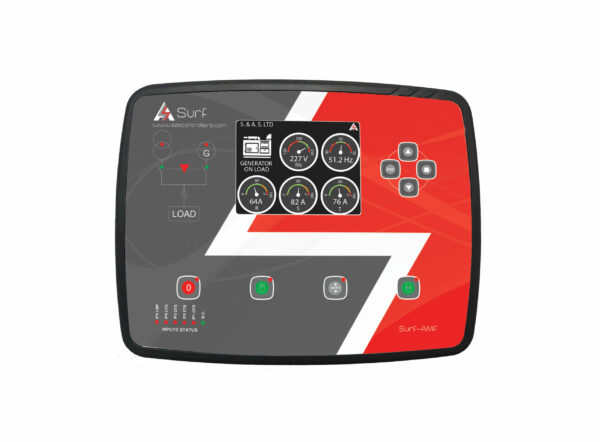

AUTOMATIC MAINS FAILURE − ENHANCED AUTO/AMF − SURF V1.3a

• Microcontroller based design.
• Automatic mains failure or Auto Start controller.
• 3.5” TFT screen.
• Simultaneous display of AC voltage, currents, frequency, hour counter, oil pressure, engine temperature, oil temperature, and battery voltage.
• Display of power in KW and energy in KWh of both engine and Utility.
• Display of fuel consumption rate (L/h), total fuel consumption, tank percentage, and RPM.
• Display of power factor of each line.
• Display of Software version, the internet connection status, the date and time, the continuous hour counter, and the utility hour counter.
• 4/8GB Micro SD card for event and data logging.
• CAN bus J1939 enabled.
• CAN bus with BAMVI_CAN that can read DC voltage up to 275Vdc and DC current up to ±300Amps. More than one BAMVI-CAN can be connected to the bus (optional).
• Ethernet interface.
• SNMP Server protocol (Get/Set using Versions v1/v2c, send traps with compliance to RFC1215).
• SNTP Client (Automatically synchronize time with a modifiable SNTP server).
• HTTP Server protocol (Retrieve logs/Download Firmware via Ethernet).
• USB interface.
• Serial RS232S interface (optional).
• Serial RS485.Modbus protocol.
• Internet communication: no software installation required.
• Galvanic isolation for utility and Genset AC inputs.
• Parameters can be edited and updated from any remote interface at any time even when the engine is running.
• Menu is accessible from the front panel as well as USB, Ethernet.
• Supports communication and SMS via GSM modem.
• Supports 4-pole systems (Utility and Genset AC inputs are isolated).
• Accepts Genset frequencies of up to 500Hz.
• Supports three current inputs for 50Hz current transformers or up to 500Hz using current transducers (optional and sold separately).
• Operation by push buttons.
Send Enquiry
Add to wishlist
Sold By SECURITY AND AUTOMATION SYSTEMS S.A.S. SARL Categories:, , Tags:, ,

SECURITY AND AUTOMATION SYSTEMS S.A.S. SARL

ABOUT SAS CONTROLLERS
KNOW MORE ABOUT OUR COMPANY
Founded in 1990, S. & A.S. Co. Ltd has developed a leading name for itself in the field of industrial electronic controls through continuous introduction of new products that are of extremely high quality and completely reliable. Extra attention is paid to the look, ease of manipulation, and installation of the product. You will find that our products agree with your budget and yet are still of the utmost quality and innovation. Our product range includes control relays, diesel generating sets controllers, elevator controllers, emergency landing devices, and VVVF drives for elevators.

S. & A.S. Co. Ltd is based in Jieh, a beautiful seaside village located 24km south of Beirut. The Jieh location is a 1000sqm building that serves as our headquarter offices and production facility. S. & A.S. also has an office in Beirut that supports the local distribution of our products.

Starting January 11th, 2021 the quality management system of the company is certified by AB certification to be in compliance with ISO 9001:2015 in the scope of design, manufacture and sales of electronic controllers.

More Products from SECURITY AND AUTOMATION SYSTEMS S.A.S. SARL

Related products

Fuel Tanks
Sold By METS ENERGY S.A.L
Request A Quote
Add to wishlist
Sold By METS ENERGY S.A.L

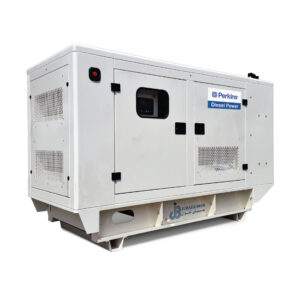

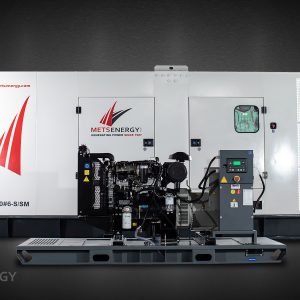

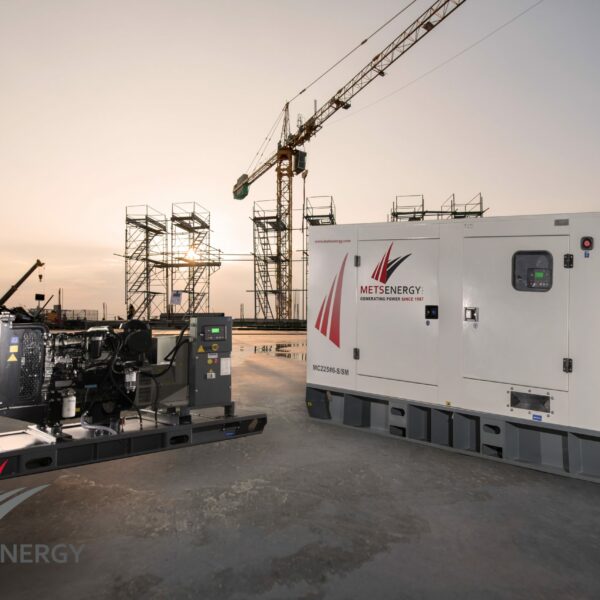

Diesel Powered Generators
